Integrated probe sonicator with inbuilt chiller -maintains your set temperature (4β40Β°C) automatically throughout the sonication run. Protects enzymes, RNA, cells, and temperature-sensitive pharma samples. Digital amplitude control, pulse mode, energy dosimetry. IEC certified. Exported to pharma and research labs worldwide.
A sonicator chiller unit is an integrated laboratory instrument combining a high-intensity probe sonicator with a built-in refrigeration chiller. The chiller actively removes heat generated by sonication, maintaining the sample at a precisely set temperature throughout the run β automatically, without operator intervention.
Probe sonicators generate significant heat in samples during operation. For temperature-sensitive applications β enzyme extraction, RNA shearing, cell lysis for sensitive proteins, nanoparticle synthesis in temperature-reactive solvents, and pharmaceutical emulsification β uncontrolled temperature rise causes sample degradation, loss of activity, or altered product characteristics. The traditional workaround of manual ice-bath management is operator-dependent, poorly reproducible, and impractical at scale.

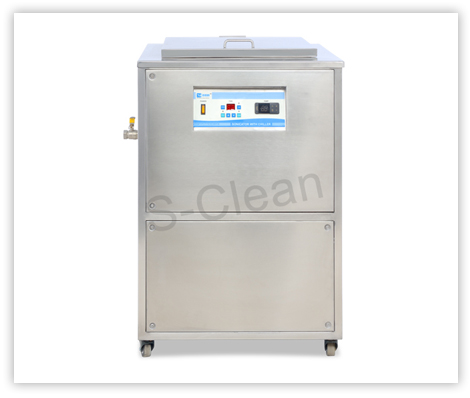

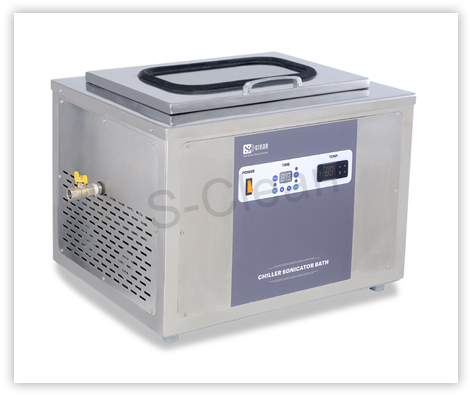

Samarth Electronics manufactures sonicator chiller units in table-top models (for lab bench use) and floor-mounted models (for larger sample volumes and industrial applications). The chiller circuit automatically modulates cooling output to maintain your set temperature with Β±0.5Β°C accuracy β run-to-run consistency that manual ice management can never achieve.
Compressor-based cooling maintains set temperature Β±0.5Β°C β even during continuous high-amplitude sonication.
Digital amplitude control (10β100%), programmable pulse parameters, energy dosimetry β all in one unit.
4Β°C to 40Β°C (standard). Custom ranges available. Set point is held throughout the entire run.
Temperature, amplitude, elapsed time, and total energy (Joules) all displayed simultaneously.
Compatible with data logger and printer for GLP/GMP-compliant process records.
Set parameters and start β the unit manages everything. No operator monitoring required.
| Parameter | Specification |
|---|---|
| Sonication frequency | 20 kHz / 22 kHz |
| Power output | 100W / 200W / 500W (model-specific) |
| Temperature set range | 4Β°C to 40Β°C (Β±0.5Β°C accuracy) |
| Cooling system | Integrated compressor refrigeration |
| Sample volume | 1 mL to 5 litres (probe-dependent) |
| Amplitude control | 10β100% digital |
| Pulse mode | On/Off: 0.1β9.9 sec each |
| Energy monitoring | Joules (real-time) |
| Display | Digital LCD: temperature, amplitude, time, Joules |
| Power supply | 230V/50Hz; 110V/60Hz for USA |
| Available models | Table-top and floor-mounted |
The sonicator chiller unit is essential for any sonication application where sample temperature must be controlled β particularly pharma (enzyme stability, RNA integrity, liposome preparation) and genomics (NGS library preparation, ChIP assays).
Samarth Electronics exports Sonicator Chiller Unit to industrial buyers, distributors, and research institutions in 12+ countries. Every export unit is manufactured at your destination voltage (110V/120V/220V/230V/400V), IEC certified, and ships with complete technical documentation, CE declaration where applicable, and certificate of origin.
Precision ultrasonic equipment since 2006 β thousands of systems delivered across India and internationally.
Full IEC electrical certification. CE-compatible designs for European export. Globally accepted.
Every system built to your exact specification β tank size, frequency, voltage, automation level.
Material certificates, calibration records, IQ/OQ protocols, wiring diagrams β all provided.
Replacement transducers, generators, heating elements β shipped to any country within days.
No distributor markup β manufacturer prices 40β60% below European brands for equivalent quality.
Tell us your application, quantity, and destination country. Our engineers respond with a complete quotation within 24 hours β no obligation.
