Load dirty parts at one end - collect clean and dry parts at the other. Variable-speed SS mesh belt through ultrasonic wash, rinse, DI rinse, and hot-air dry zones. PLC-controlled. Belt widths 200mmโ1000mm. For fasteners, bearings, stampings, PCBs, and pharma closures. IEC certified. Exported worldwide.

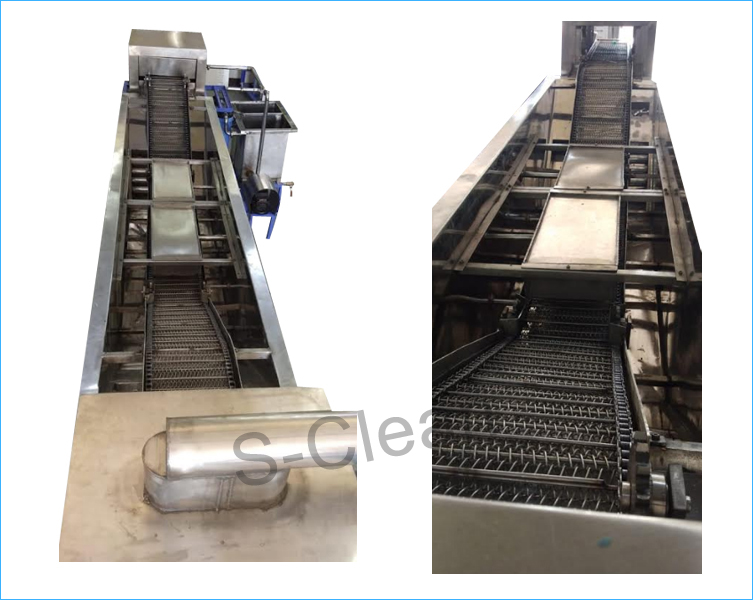

An ultrasonic cleaner with conveyor belt converts cleaning from a manual batch process into a continuous automated production step. A stainless-steel mesh belt carries parts at adjustable speed through all cleaning and drying zones - no batch cycles, no operator intervention, no waiting time between parts.
Samarth Electronics manufactures conveyor cleaning systems with belt widths from 200mm to 1,000mm, throughputs from 50 kg/hour to over 1,000 kg/hour, and zone combinations matched to your process. Variable-speed drives let belt speed be adjusted from the PLC panel while the line runs. Integration with CNC machines, stamping presses, robotic loaders, and assembly stations creates a fully automated zero-handling production cell.
Adjust belt speed from the PLC panel - change dwell time per zone without stopping the line.
Ultrasonic wash โ hot rinse โ DI rinse โ hot-air dry โ all zones in one continuous inline system.
Single or multi-lane configurations matched to your part dimensions and throughput.
Zone temperatures, ultrasonic power, rinse flow, belt speed, and drying all managed from one HMI.
Mechanical interfaces for CNC machines, stamping presses, robot arms, and assembly lines.
Closed-loop DI rinse in final zone โ ultra-pure output; near-zero water discharge.
| Parameter | Specification |
|---|---|
| Belt material | SS304 mesh or wire-link |
| Belt width | 200mm to 1,000mm custom |
| Belt speed | 0.1โ5 m/min PLC-adjustable |
| Cleaning zones | 2โ5 zones (ultrasonic wash / rinse / DI rinse / hot-air dry) |
| Frequency | 28โ40 kHz |
| Throughput | 50โ1,000+ kg/hour |
| Drying | Hot-air blowers / air knife / IR heaters |
| Control | PLC + HMI touchscreen + data logging |
| System length | 3m to 15m |
| Power supply | 230V/50Hz or 400V/50Hz 3-phase |
Ideal for high-volume uniform parts where batch cleaning creates production bottlenecks - automotive, electronics, hardware, pharma packaging, and consumer goods.
Samarth Electronics exports Ultrasonic Cleaner with Conveyor Belt to buyers in 12+ countries. Every unit is built at your destination voltage (110V/220V/230V/400V), IEC certified, and ships with full technical documentation, CE declaration where required, and certificate of origin for preferential trade duty treatment.
Since 2006 - thousands of units delivered across India and 12+ export countries.
Full IEC electrical certification. CE-compatible designs available for European buyers.
Every unit built to your specification โ tank size, frequency, voltage, automation level.
Material certs, calibration records, IQ/OQ protocols, CE declarations - all supplied.
Parts dispatched to any country within days. Remote technical support always available.
No distributor markup โ 40-60% below European brands for equivalent IEC-certified quality.
Tell us your application, quantity, and destination. Our engineers respond within 24 hours with a complete quotation โ no obligation.
