Objective : To maintain the bath temperature below the room temperature up to 10°C to avoid adding of "Ice Flakes" with inbuilt cooling facility. It helps to control the bath temperature without personalized attention & reduces the chance of damage to process liquids in a professional way.

System : The total system consists of 2 parts.
A) Ultrasonic Chamber
B) Cooling System consisting of cooling coils, condenser & compressor of suitable capacity. This helps in maintain the required temperature.

Cooling facility
1) Temperature range 10˚C to Room Temp. Max 30°C.
2) Temperature stability: ± 2 ˚ C
3) Display: Dual 7 segment LED
4) Display resolution: 1 ˚ C
5) Refrigerant: CFC free
6) Compressor type- Hermatically sealed gas compressor

We will provide copper cooling coils around outer surface of the tank. Which will be properly insulated & will be connected to a condenser & compressor built-in the machine (Chillier system) this will control bath temperature as per your requirement.

TECHNICAL SPECIFICATIONS FOR ULTRASONIC CHILLER SONICATOR BATH

Brand

S Clean.

Model

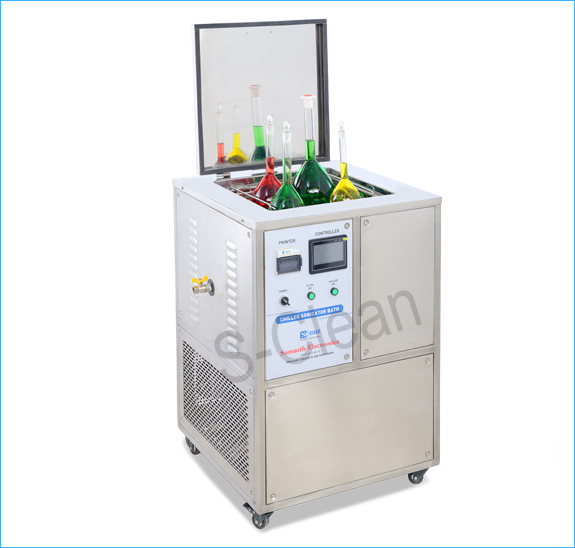

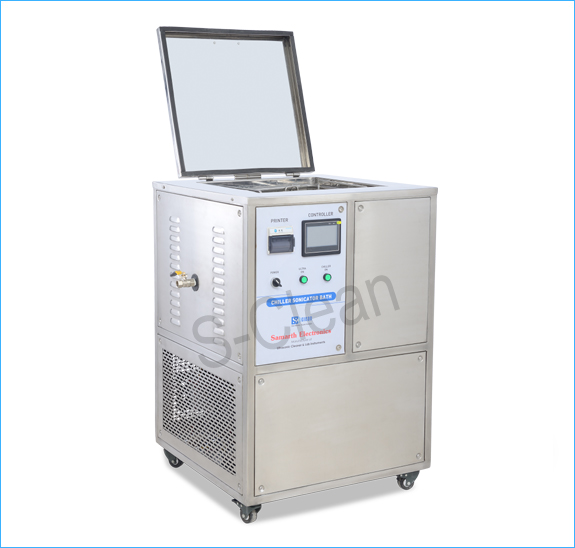

SM 500 CHUS ( 50 liter Floor Top chiller sonicator Bath)

Tank size

500 x 500 x 200 mm ( l x w x h )

Basket size

450 x 450 x 150 mm ( l x w x h )

Chamber material

SS 304 (16 SWG THICKNESS) with round corners & mirror
finish.

Tank enclosure

SS 304 Pipe Frame & Door Panels with Matt Finish Panels.

Basket

SS 304 (Adjustable Rack type basket with Perforated tray).

LID

SS 304 ( Hinged Type).

Total Solvent Capacity

50 Ltrs. Approx.

Power Output ( Ultrasonic)

750 Watts (avg.) & 1500 Watts ( peak)

Power Input

230VAC

PLC & HMI

SELECT make PLC with HMI for user friendly operations

Login Id’s

Will Provied 10 Users ID for Operating the system

Timer

0-99 min With Digital Display of set & actual through PLC

Temperature controller

Digital temperature controller with setting range 10°C to room
temperature max 30°C through PLC

PSP mode

Pulse sweep power for uniform distribution of ultrasonic
energy

Auto degassing

Pre setted for 5 Min.

Printer

Compact Printer Provided

USB Port

USB Port will be provided for downloading the selected cycle
through the USB port.

Data Saved & Available for printing .

  1. Date
  2. Time.
  3. User Name
  4. Instrument Name
  5. Instrument ID




  1. Product name
  2. Batch No.
  3. Set Time ( Min)
  4. Actual Time ( MIN).
  5. Set Temp ( ̊ C)
  6. Actual Temp ( ̊ C)
  7. Power ( %)
  8. Sign
  9. Done By:
  10. Checked By

Frequency

33 kHz ± 3 KHz

Transducers

PZT type bonded to the bottom sides of the tank (Imported
make) with weld bond technique.

Ultrasonic Generator

Advanced latest IGBT based SMPS.

Drain

½” Drain with Ball valve will be provided.

Castor Wheels

PU coated Castor wheels with front Locking facility provided for
easy movement of the system inside the QC lab.

Solvent

Aqua/Solvent Based

STD Accessories

SS304 basket, Mains cable, SS304 Lid,

SALIENT FEATURES OF ULTRASONIC CHILLER SONICATOR BATH
Imported PZT Sandwich type bonded at the bottom of the tank
Selec Make PLC & HMI for user freiendly Operations.
Compact Printer for Prining the Process Setted Parameters.
High Frequency Built in IGBT based SMPS
Timer 0 to 99 minute's Digital count down with display.
Auto degassing present 5 minutes for ultrasonic tank
Pulse Sweep Power for Uniform distribution of Ultrasonic energy for ultrasonic tank
Easy to operate and made up of SS 304 (16 SWG) Fabricated tank & Enclouser SS 304
Extensive protected generator circuits for longer & safer operation.
SS Wire mesh basket provided.
Entire Ultrasonic Tank is been covered by Insulation to safe guard the Transducers maintain the bath temperature.
Drain with Ball valve will be provided.
PU coated Castor Wheels provided.
SS 304 LID provided.
Complete Instruction Manual for easy operation will be provided.
Test & Calibration Report will come along with the machine.
IQ, OQ & PQ will be provided with the machines per our STD format
