Vapour degreasing + ultrasonic cavitation in liquid solvent + vapour rinse - three cleaning mechanisms in one enclosed system. Integrated refrigeration chiller recovers solvent vapour, prevents emissions, and enables closed-loop operation. For precision optical lenses, aerospace components, defence instruments, and sensitive electronics. IEC certified.

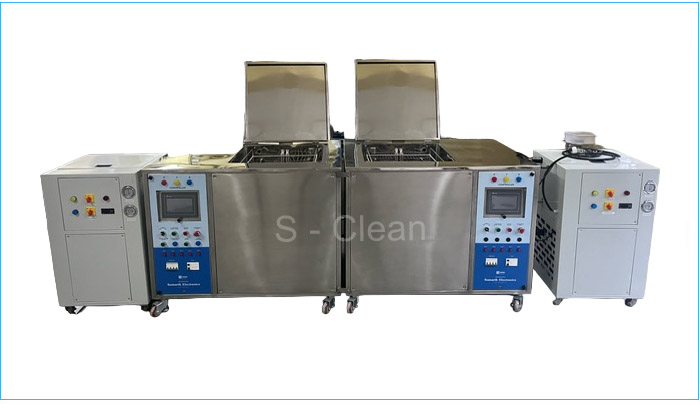

The ultrasonic cleaner with vapour and chiller unit combines three cleaning mechanisms: vapour degreasing (solvent vapour condensing uniformly on cold parts for chemical dissolution of organics), ultrasonic cavitation in liquid solvent (mechanical particle removal), and integrated chiller condenser (recovers solvent, prevents workplace vapour release, enables closed-loop reuse).
This tri-mode combination delivers surface cleanliness that aqueous cleaning systems cannot achieve โ used for precision optical lenses, aerospace hydraulic components, defence instruments, high-frequency electronic assemblies, and any component where water marks, ionic contamination, or aqueous cleaning residue are unacceptable. The closed-loop solvent recovery system minimises consumption and environmental impact.
Vapour phase + ultrasonic immersion + vapour rinse โ three mechanisms for maximum surface purity.
Compressor refrigeration recovers and recirculates solvent โ closed-loop operation, minimal emissions.
28โ40 kHz in the liquid solvent removes particles that vapour alone cannot dislodge.
Continuous distillation purifies recovered solvent โ low consumption, controlled purity.
Temperature cutout, solvent level sensor, lid closure interlock โ all standard.
All three cleaning stages in one enclosed cabinet โ significantly smaller than separate systems.
| Parameter | Specification |
|---|---|
| Cleaning stages | Vapour degreasing + ultrasonic immersion + vapour rinse |
| Frequency | 28โ40 kHz ultrasonic stage |
| Chiller | Integrated compressor refrigeration coil condenser |
| Solvents | HFE / nPB / PCE / TCE or as specified |
| Tank material | SS304/316 with solvent-resistant construction |
| Safety | Temperature cutout, solvent level sensor, lid interlock |
| Power supply | 230V/50Hz |
| Certification | IEC certified |
For the highest-precision cleaning requirements where aqueous cleaning leaves water marks, ionic contamination, or residue on critical surfaces.
Samarth Electronics exports Ultrasonic Cleaner with Vapour & Chiller Unit to buyers in 12+ countries. Every unit is built at your destination voltage (110V/220V/230V/400V), IEC certified, and ships with full technical documentation, CE declaration where required, and certificate of origin for preferential trade duty treatment.
Since 2006 โ thousands of units delivered across India and 12+ export countries.
Full IEC electrical certification. CE-compatible designs available for European buyers.
Every unit built to your specification โ tank size, frequency, voltage, automation level.
Material certs, calibration records, IQ/OQ protocols, CE declarations โ all supplied.
Parts dispatched to any country within days. Remote technical support always available.
No distributor markup โ 40-60% below European brands for equivalent IEC-certified quality.
Tell us your application, quantity, and destination. Our engineers respond within 24 hours with a complete quotation โ no obligation.
