| Specification | ||||
|---|---|---|---|---|

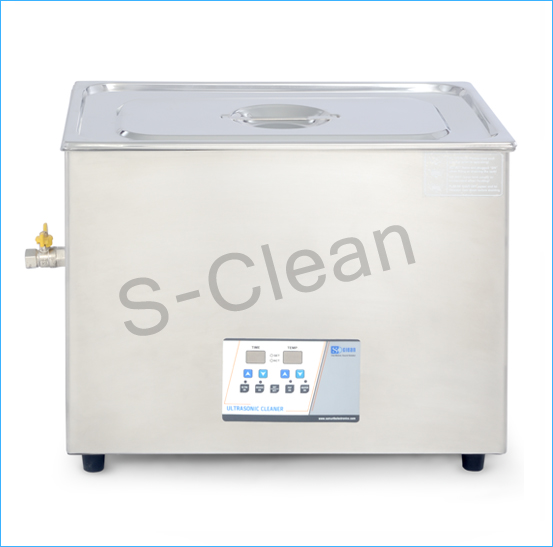

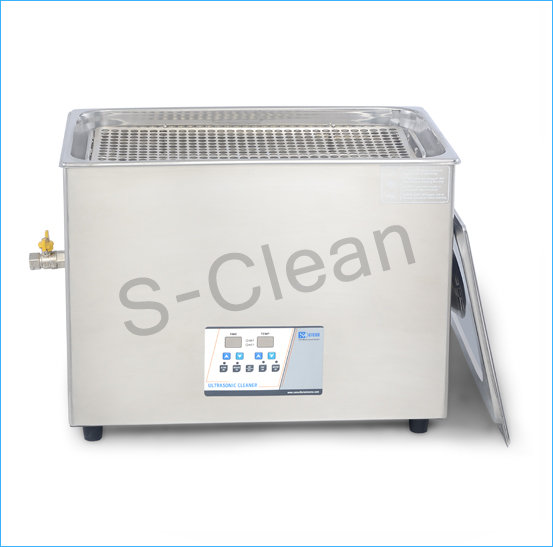

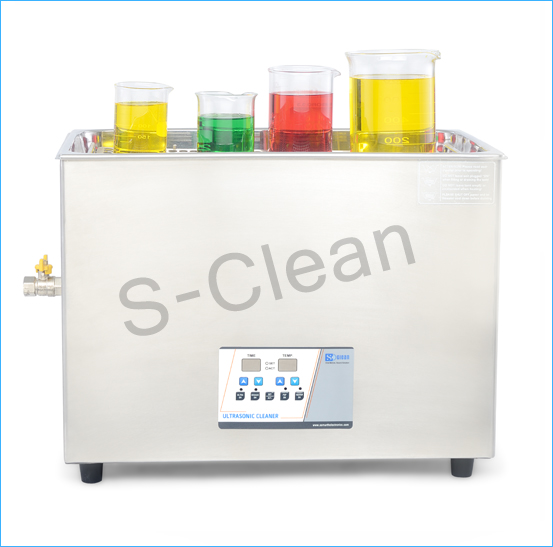

| Model | : | M-20 US MICRO PLUS MODEL | ||
| No. of chambers | : | One | ||
| Tank size | : | 500 x 300 x 150 mm ( l x w x h ) | ||
| Encloser size | : | 525 x 320 x 400 mm ( l x w x h ) | ||
| Chamber material | : | SS 304 | ||
| Tank Enclosure | : | SS 304 | ||
| Basket | : | SS 304 | ||
| Total Solvent Capacity | : | 20 Ltrs. Approx. | ||
| Power Output ( Ultrasonic) |
: | 400 Watts | ||
| Power Input | : | 230 VAC | ||
| Timer | : | Digital Display with 0-99 min settable. | ||
| Frequency | : | 33 khz ± 3 Khz. | ||
| Transducers | : | Imported make PZT type bonded at the bottom of the tank with weld bond technique. | ||
| Ultrasonic Generator | : | Advanced latest MOSFET based SMPS | ||
| Heater | : | 400W for efficient heating | ||
| Digital Temp Controller | : | Digital temperature controller with setting max-60oC | ||
| Solvent | : | Aqua/Solvent Based | ||
| Accessories | : | SS 304 lid, SS 304 Basket, Drain valve & User friendly operation manual. | ||
