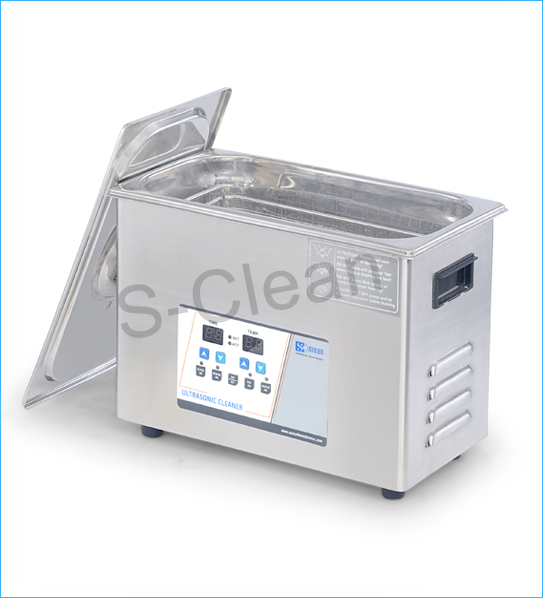

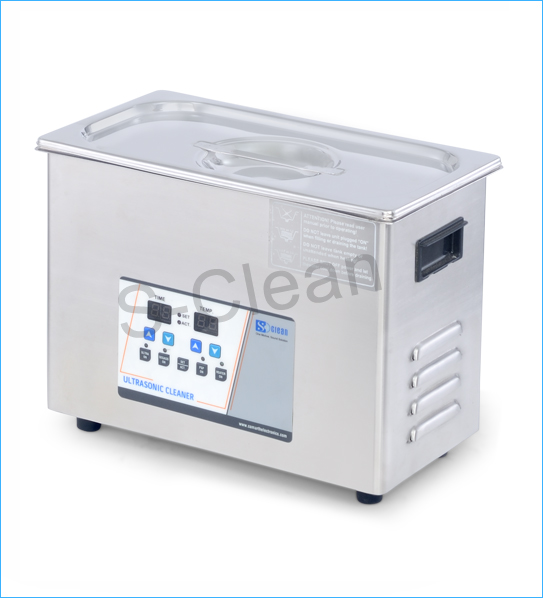

M -3.5 US




Specification
Model : M -3.5 US
Tank Size : 300 X 150 X 100 mm ( L X W X H )
Outer Size : 325 X 176 X 240 mm ( L X W X H )
Tank : SS 304
Enclosure : SS 304
Tank Capacity : 3.5 Liter's
Ultrasonic Power : 100 Watts
Ultrasonic Frequency : 33KHz ± 3Khz.
Timer : 0 TO 30 Minutes
Power Input : 230 VAC
Tansducers : PZT TYPE BONDED AT THE BOTTOM OF THE TANK (MORGAN UK MAKE)
Ultrasonic Generator : ADVANCE LATEST MOSFET / IGBT BASED SMPS
Accessories : LID, BASKET, POWERCORD
Optional Features : ALSO AVAILABLE WITH HEATER AND DIGITAL TEMP.
TEMPERATURE CONTROLLER)
